BMX MONGOOSE TITLE JUNIOR RED 2020
Here is the new 2020 BMX Race Mongoose Title range ! Ideal to begin the race, the Title Junior will fit for the young riders, from 1,35m to 1,45m.
Details :
| FRAME | Tectonic® T1 aluminum; 18,5 » TT; internal cable routing |

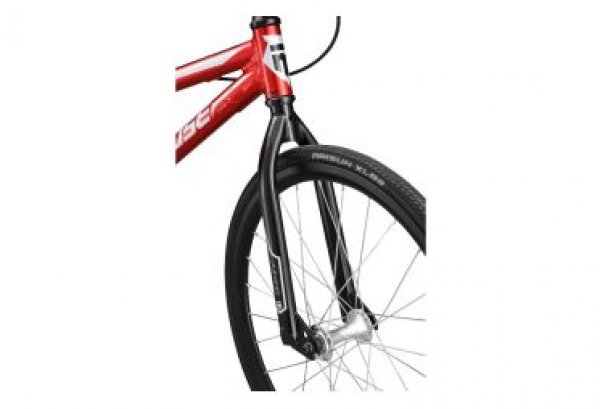

| FORK | Hi-Ten steel; 1″ threadless steerer |

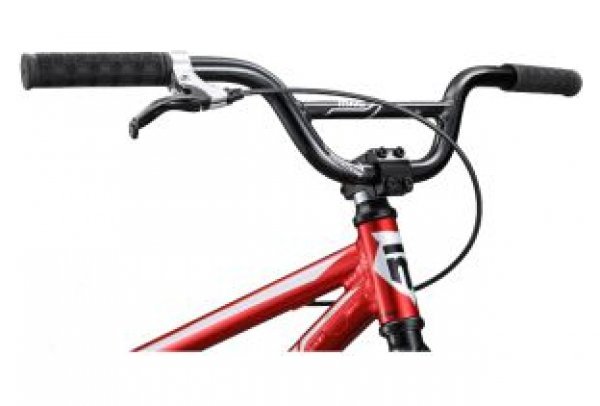

| HANDLEBAR | Mongoose® aluminum 4″; 24 » in width |
| GRIPS | Mongoose Hive, 120mm |
| STEM | Mongoose® front load30 mm Ext. |
| HEADSET | Threadless 1″ |
| BRAKE LEVIER | Alloy |
| BRAKE CANTILEVER | V-Brake alloy |

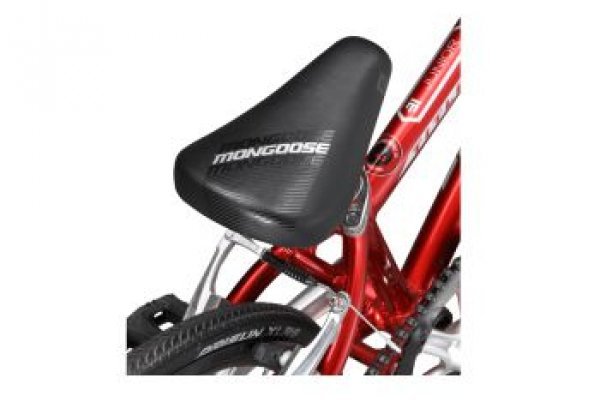

| SEAT | Combo Mongoose |
| SEAT POST | seat post 22.2″ » integrated |
| CRANKS | Samox® alloy 3-piece, 150 mm / Euro cartridge bearing; square taper axle |
| BB TYPE | Square Taper |
| SPROCKET | 40 T – 4 points |
| GEARING | 40 x 16 |
| PEDALS | Plastic body with 9/16″ axle |
| CHAIN | KMC® S1 |
| RIMS | Xposure® alloy double-wall, 28H |
| FRONT HUB | Alloy, 3/8″ axle; 28H; ball bearing |
| REAR HUB | Alloy, 3/8″ axle; 28H, 16T freewheel; ball bearing |
| TIRES | Arisun XLR8 20’’x 1-1/8″; wire bead |
| WEIGHT | 7,5kg |
GEOMETRIES :
| FRAME SIZE | Junior |
| SEAT TUBE LENGTH (MM) | 233 |
| CHAINSTAY LENGTH (MM) | 340 |
| HORIZONTAL TOP TUBE LENGHT (MM) | 470 |
| HEAD TUBE LENGTH (MM) | 90 |
| ANGLE DIRECTION | 73° |
| ANGLE TUBE SELLE | 71° |
| SEAT POST CLAMP SIZE (MM) | 25,4 |
| STANDOVER HEIGHT (MM) | 510 |
| WHEELBASE | 863 |
GRÖSSENTABELLE BMX RAC
| Körpergröße (cm) | Rahmengröße |
|---|---|
| 100 – 115 | Micro |
| 115 – 135 | Mini |
| 135 – 145 | Junior |
| 140 – 155 | Expert |
| 150 – 165 | Expert XL |
| 155 – 170 | Pro |
| 170 – 180 | Pro XL |
| > 180 | Pro XXL |
